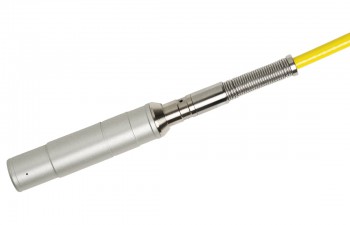

QCR fiber cable
Providing a collimated laser beam output. With a compact, air-cooled and robust connector design the QCR fiber cable is developed for use also in robotic applications. The QCR interface fits to standard clamping adapters. Built with standard or customized optical fiber. Pigtail for direct splice onto fiber laser.Tech spec
|
AR-Coating |
1030-1090 nm |
|
Dimensions |
SM-300 μm |
|
Lengths |
1-20 m |
|
Max. beam diameter (1/e2) |
8 mm (single-mode) |
|
Max. power (CW) |
750W |
|
Peak power |
Max. 2.5 kW at 10 ms PL |
|
Fiber losses |
< 3%, typically 1% |
|
Compatible interface |
?30 mm |
Features
? Quartz block
? Synthetic fused silica optics
? Safety interlock
? Collimated output beam
? One pigtail end for splicing
? Beam expander telescopes available
